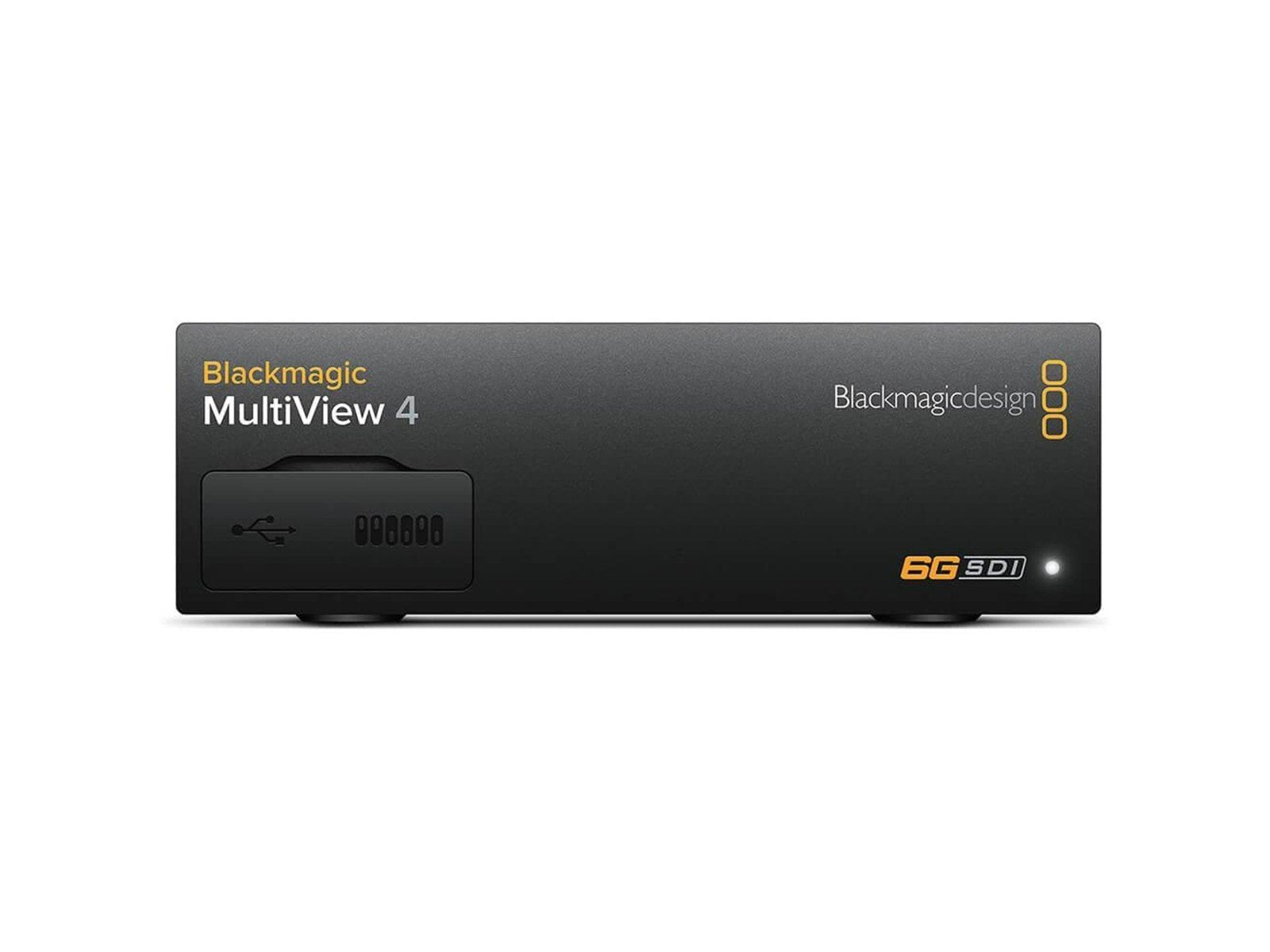

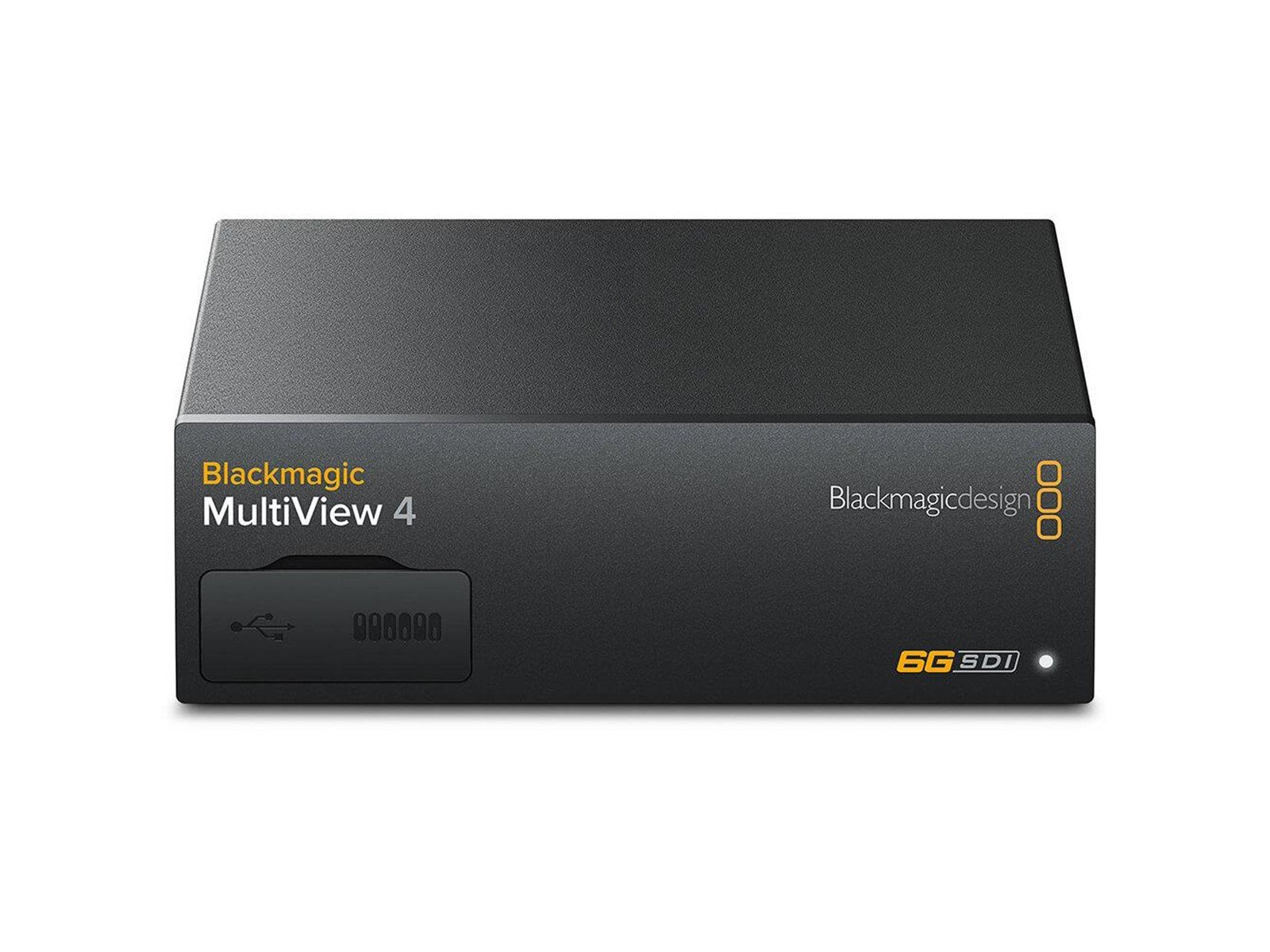

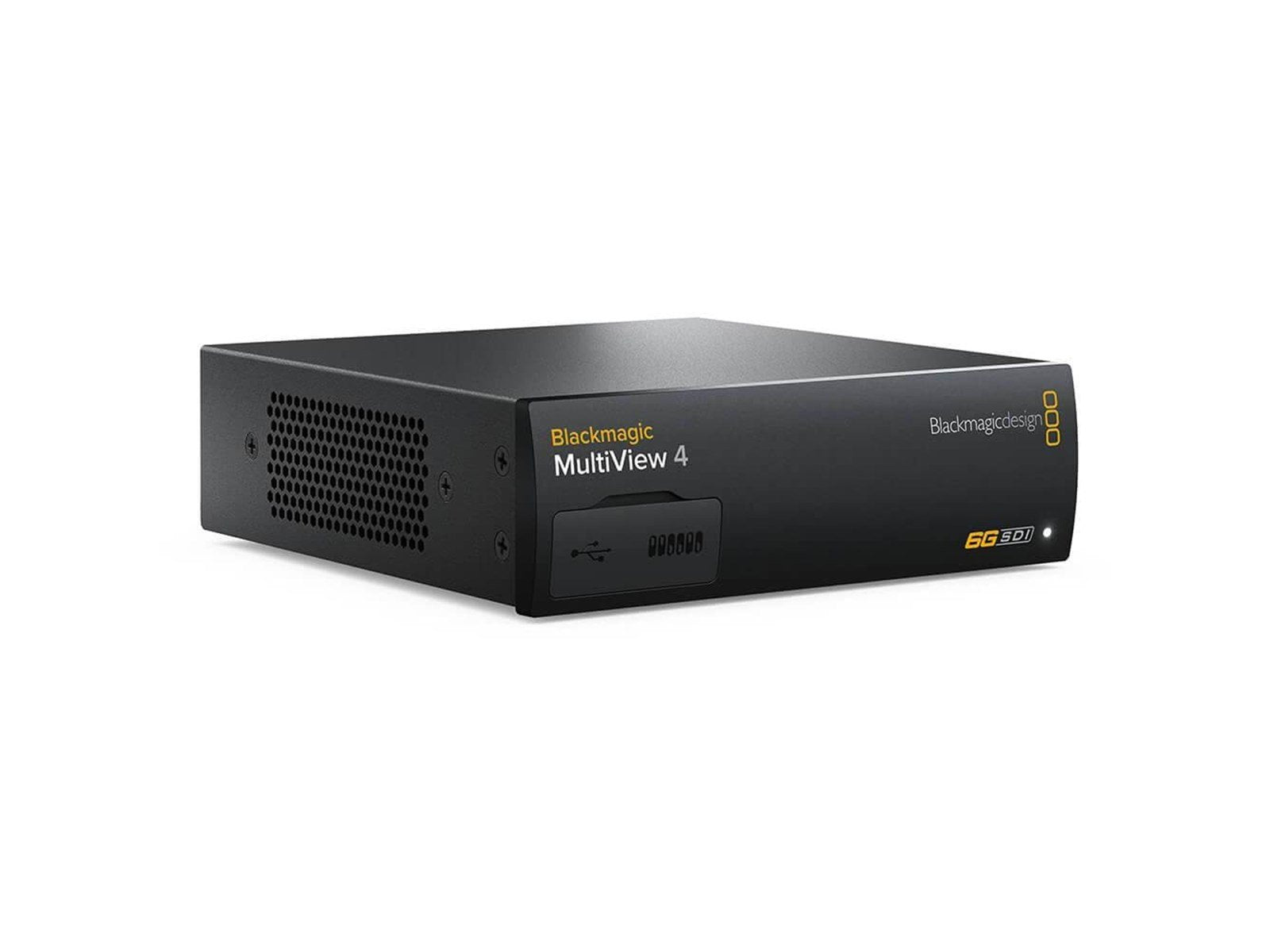

Blackmagic MultiView 4

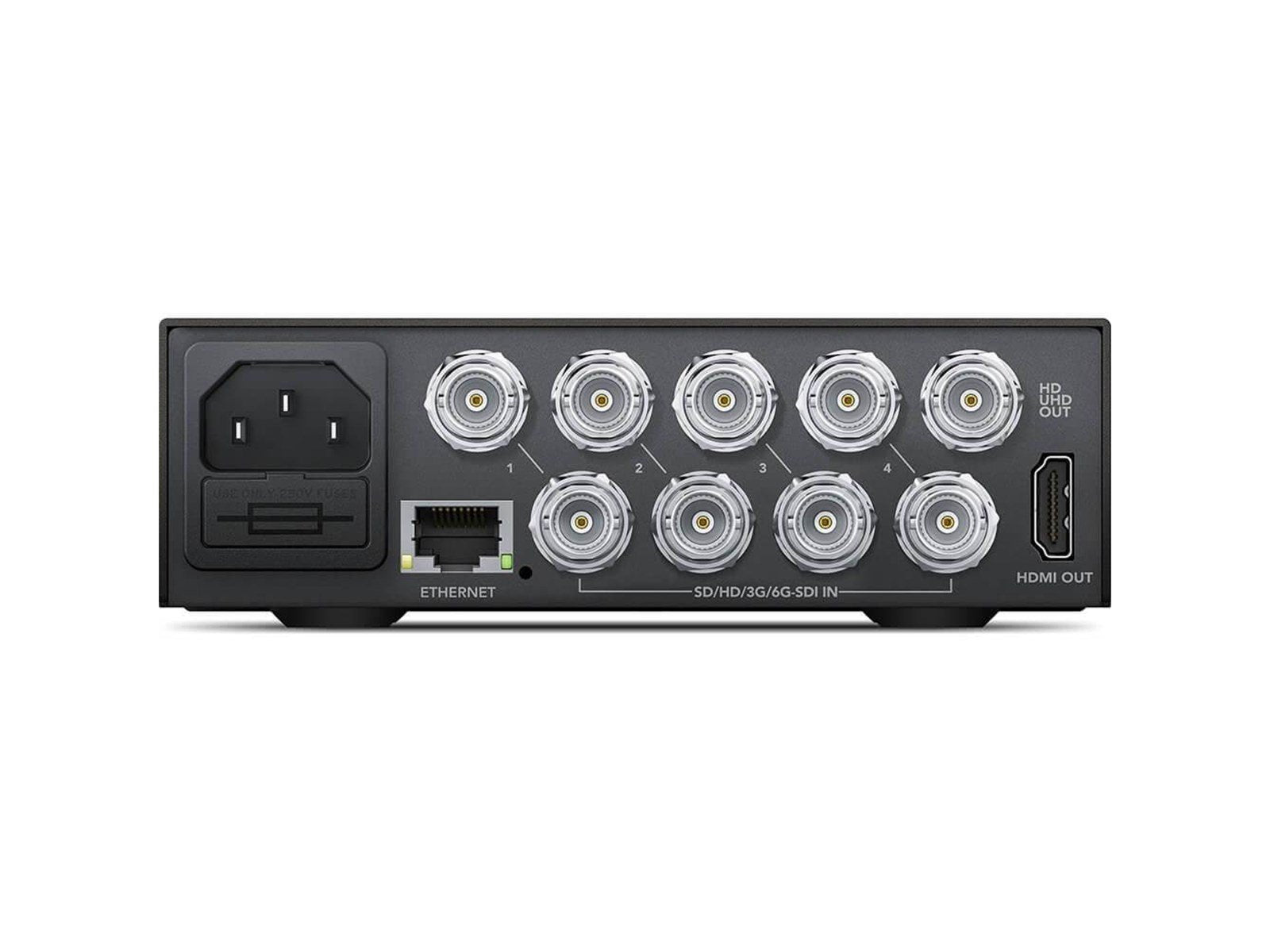

Connections
SDI Video Input 4 x 10-bit SD/HD/6G-SDI
SDI Video Output 4 x 10-bit SD/HD/6G-SDI loop outputs
Multi-View Outputs 1 x 10-bit HD/6G-SDI
1 x HDMI, type A (supports EDID of the monitor)
Multi-Rate Support Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video.
Updates USB 2.0 high speed (480 Mb/s) interface or via Ethernet
Control 1 x RJ45 Ethernet
Configuration Via RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
Reclocking On all SDI outputs; auto switching between SD, HD, or 6G-SDI video

Standards
Format Support SD Format Support
625/25 PAL
525/29.97 NTSC

HD Format Support
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K Format Support
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25

4K Format Support
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates SD-SDI: 270 Mb/s
HD-SDI: 1.5 Gb/s
3G-SDI: 3 Gb/s
6G-SDI: 6 Gb/s
SDI Video Sampling 4:2:2 and 4:4:4
SDI Color Precision 4:2:2 and 4:4:4 10-bit
SDI Color Space Inputs: YUV or RGB
Outputs: YUV
SDI Audio Sampling 48 kHz and 24-bit
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M

Software
Software Control Multi-view control software included free for Windows and Mac OS X
Internal Software Upgrade Via included updater application

General
Power Supply IEC power cable required
90 to 240 VAC input
PoE+: 48 VDC
Power Consumption 16 W
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90% non-condensing
Rack Space 1 RU
Dimensions (W x H x D) 5.51 x 1.75 x 6.69" (13.99 x 4.45 x 16.99 cm)
Weight 1.28 lb (0.58 kg)
